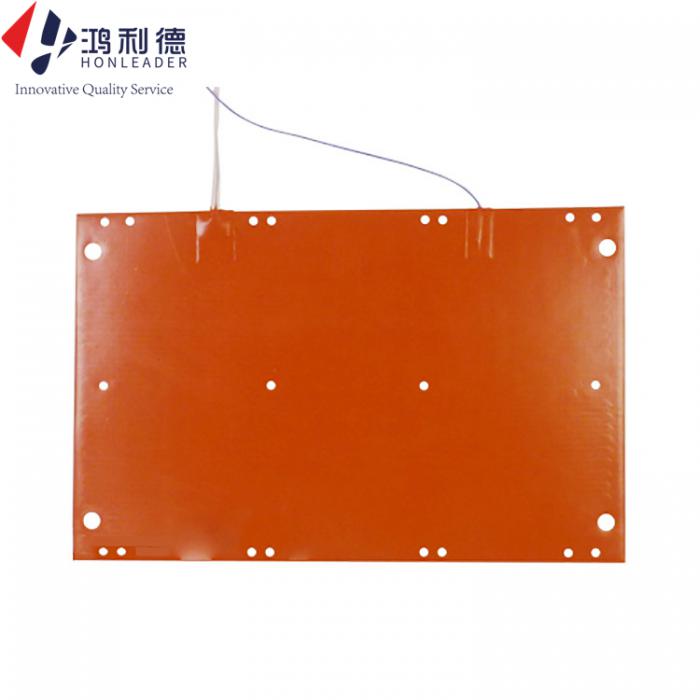

Name:3D Printer Silicone Rubber Heating Bed
Type:Flexible Heater
Voltage:5V-480V; AC/DC Customizable
Power Range:0.01-2w/cm²; Recommended: 0.1-0.8w/cm²
Material:Silicone
Maximum size:1200mm x 5000mm
Thickness:Conventional 1.5mm~3mm;Customizable
Temperature tolerance:±0.1℃
Temperature control accuracy:±1℃
Continuous use temperature:≤250℃
Shapes:Customizable
Temperature controller:Digital display/Manual knob tempe-controller
Certification:ISO,CE,Rohs,EAC,UL
Warranty:3 Years
  • 产品介绍.png

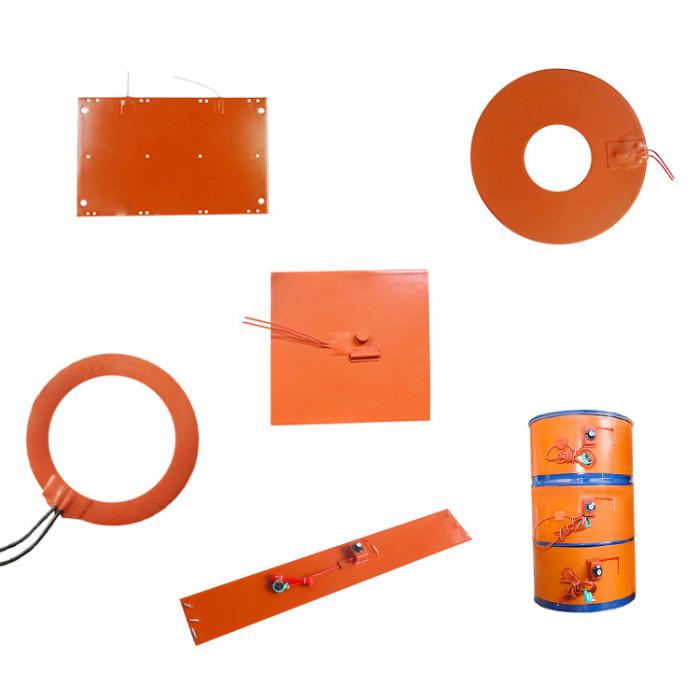

    ● Silicone rubber heater has good flexibility, mainly composed of nickel-chromium alloy heating wire and silicone rubber high temperature insulation layer (Standard thickness is 1.5mm).

    ● Silicone rubber heater has the characteristics of fast heating, uniform temperature, high thermal efficiency, high strength, convenient use, safe life of up to 5 years, and not easy to aging. It can be in close contact with the heated object.

    ● The heating element of the silicon rubber heater can be wound or etched foil process. The winding element consists of a resistance wire wound on a glass fiber wire to provide support and stability. The etched foil heater is made of thin metal foil as a resistance element, the heating power can reach 1.2W/CM2, and the heating effect is more uniform. To ensure that the heat is transferred to any place needed.

    ● Silicone rubber heaters can be used in humid, non-explosive gas occasions, industrial equipment pipelines, tanks, etc. for mixing and heat preservation (oil drum heaters), and can be directly wound on the surface of the heated object. It can be used as medical equipment (such as blood analyzers, test tube heaters, medical care shapers, body shaping and slimming belts to compensate for heat, etc.).









    D (2).jpg







    A (2).jpg


    1. Heater for oil drum                           2. Heating and heat preservation of medical equipment

    3. Large equipment heating                 4. Heating sheet for baking cup (pan) machine

    5. Battery heating                                 6. Semiconductor processing equipment

    7. Food service equipment                   8. Heating of chemical pipelines

    9. Analytical instruments                     10. Aerospace

    11. Antifreeze equipment                    12.3D printing hot bed

    13. Heating and heat preservation of various mechanical instruments 14. Medical equipment, such as blood analyzers, respiratory therapy devices and hydrotherapy 15. Antifreeze for military installations, aircraft instruments and hydraulic equipment

        ......

    (Part for your information, in fact, silicone rubber heaters can be used in many industries that require heating, heat preservation, dehumidification and antifreeze)
