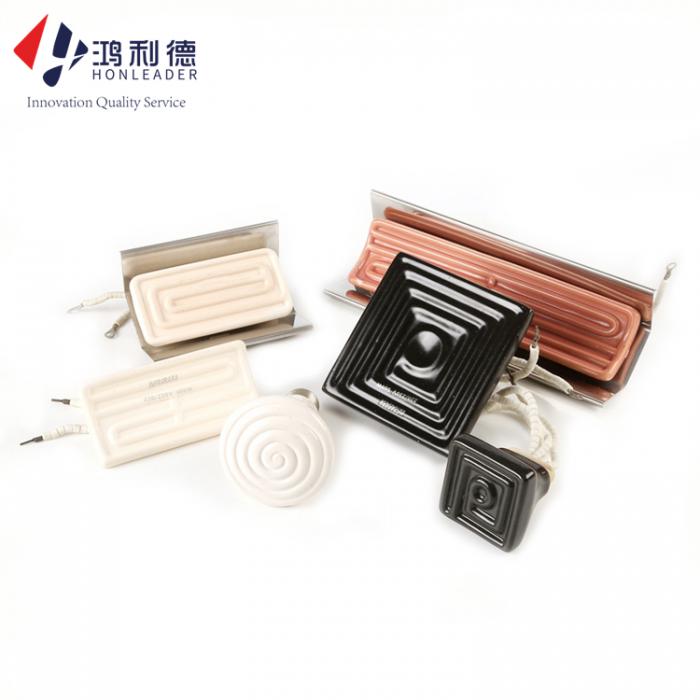

Infrared Ceramic Plate Heater Infrared Ceramic Plate Heater Infrared Ceramic Plate Heater Infrared Ceramic Plate Heater
Name:Infrared Ceramic Plate Heater
Type:Infrared Heater
Voltage:110V/220V/380V/415V/ Customization available
Wattage tolerance ():±3
Shape:Hollow/Flat/Curved/Solid,etc
Resistance wire:Cr20Ni80
Working Temperature:Max 800°C, depend on watts
Color:White,Black,Yellow,Pink, Green,etc
Lead Connection:Ceramic Bead Lead Wire 150mm
Color temperature (K):800~2500K
Average service life (H):≥5000H
Accessories for option:Reflector or Thermocouple available
Length (mm):100mm~3000mm Available
Warranty:2 Years
  • 产品介绍.png


    ● Infrared Ceramic Heater use conductor containing more than 95% silicon and quartz glass hich can resist 1800°C as main material. The spiral Cr20Ni80 resistance wire is cast into the conductor. It generates heat through heat conduction and heat radiation, and has a certain penetrating power. ● Infrared Ceramic Heater operate in the temperature of 300°C to 700°C (572°F - 1292°F) producing infrared wavelengths in the 2 - 10 micron range. Most plastics and many other materials absorb infrared best in this range, which makes the ceramic heater the most popular infrared radiant emitter on the market.

    ● With its advantages in thermal efficiency, energy conservation and radiation safety, infrared ceramic heater widely used in: Vacuum blister machine, Coating machine, Automobile interior molding machine, Medical equipment and Smokeless barbecue oven, etc.




















    Food industry: food drying, food heating, food packaging material molding, food high temperature sterilization ● Printing industry: drying and curing process of glue and ink ● Glass industry: glass annealing and coating drying process ● Packaging industry: PET blowing, laminating, ink drying process ● Shoemaking industry: glue activation and drying process ● Furniture industry: rapid drying process for water-based/oil-based coatings and paints ● Rubber industry: surface modification, plastic softening, molding process ● Photovoltaic industry: battery silicon wafer welding, sintering, substrate drying, spray preheating process ● Automobile industry: Sunlight simulation environment warehouse, sealing tape/wire harness heating, whole vehicle painting and baking paint, body part patching and baking process ● Textile industry: coating drying, fabric preheating, drying, pressing and adhesive activation process ● Household appliances: disinfection cabinets, convection ovens, toasters, toasters, and food ovens,etc     ......
